RAYKUBE TT Lock BLE IP65 Waterproof Smart Lock Digital Fingerprint Lock With APP/Password/IC Card Unlock For Sliding door

Overview-DQ06

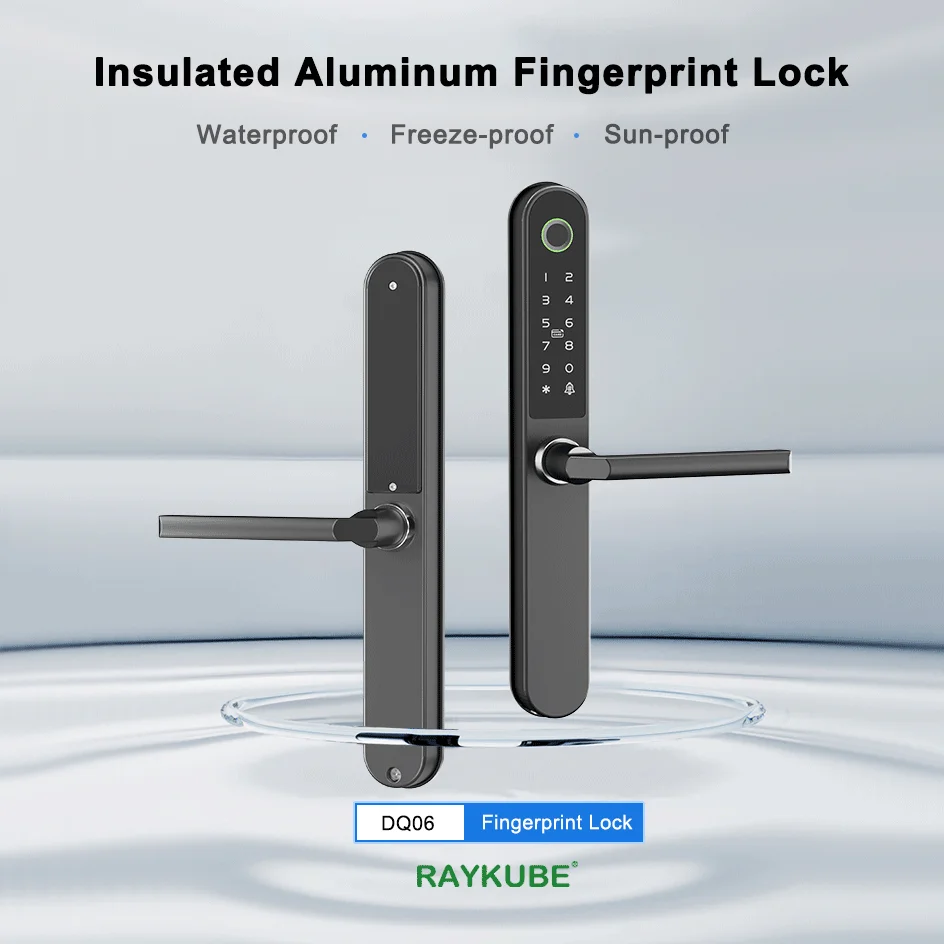

DQ06 is an advanced waterproof TT lock intelligent fingerprint lock. 3.1 mm narrow design is applicable to more than 99% of doors, such as Aluminum Door, Bridge-cut Alum Door, Framed Glass Door, Wood Door, Sliding Door, Swing Door, Screen Door etc., Home, Office, Hotel, Apartment,  Airbnb, etc

Features

1. [5 unlock methods ] Access by TT Lock App, Fingerprint,Card, Pass code, key
2. [APP unlock remotely] Works with TT Lock APP Control System to connect home network.

3. [FPC fingerprint]FPC fingerprint reader gives you the best security experience ;
4. [Material]The lock is aluminum alloy, durable and corrosion resistance;
5. [Emergency battery] Powered by 4*AAA dry batteries，Our aluminum electronic door lock would alarm if it is in low battery.
6. [Waterproof] IP65 Waterproof level for outdoor use. Aluminum alloy lock panel, with acrylic Touch screen keypad.
7. [Easy to manage] Multi-level administrator settings to help you better manage your smart buildings;
8. [Access diary]Query unlock records anytime and anywhere, the first time to know your home security;
9. [Application]House/ Hotel/ Appartment/ Airbnb/ Office

10. [More Options] There are more 24+ options available

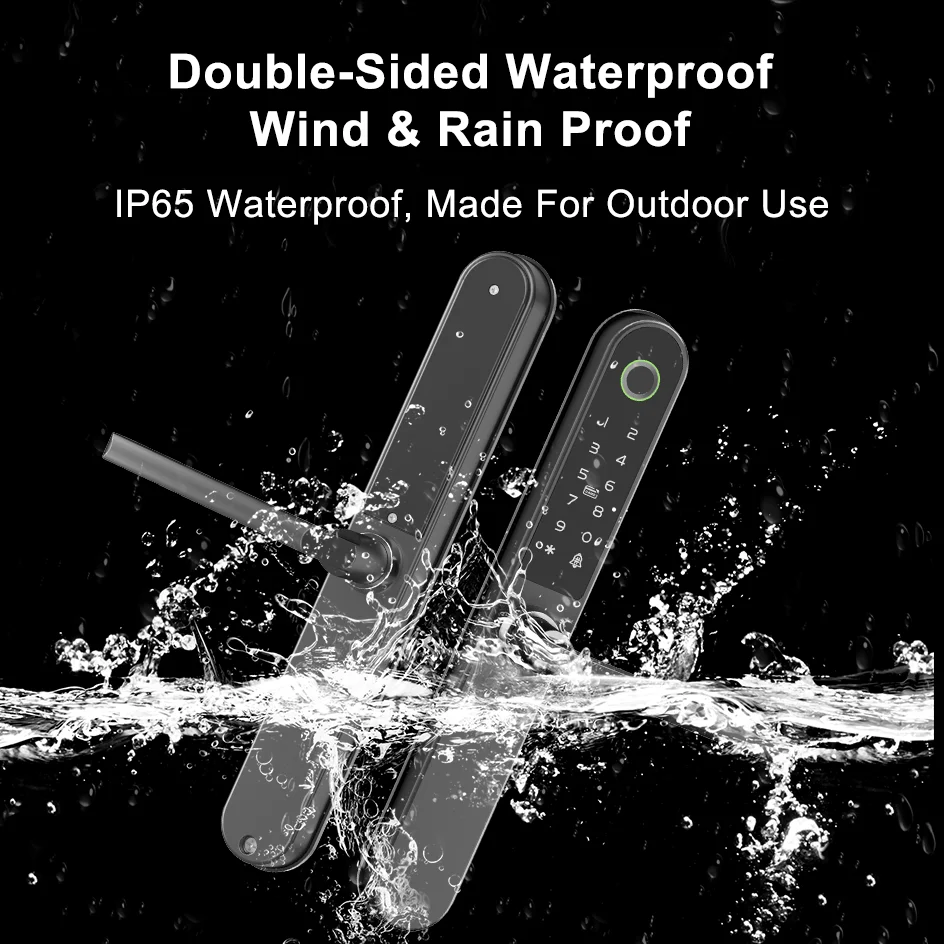

P65 Waterproof, can be installed outdoor

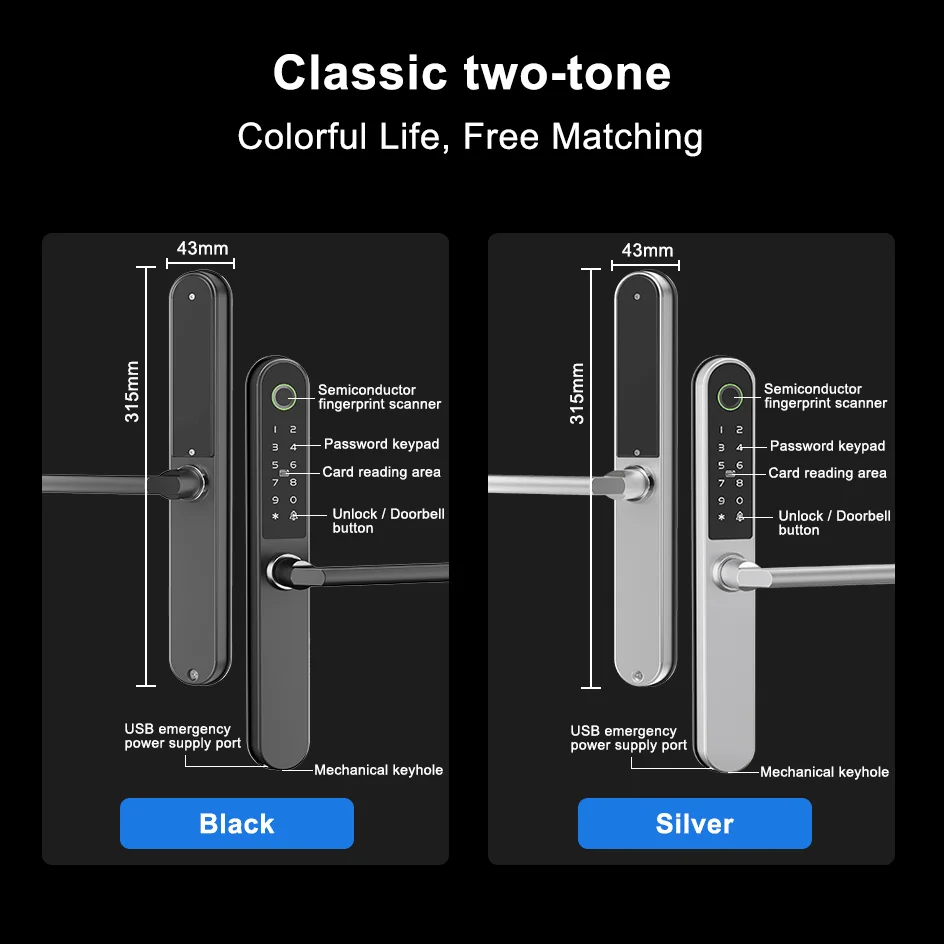

Access by TT Lock App, Fingerprint, IC Card, Pass code, metal key

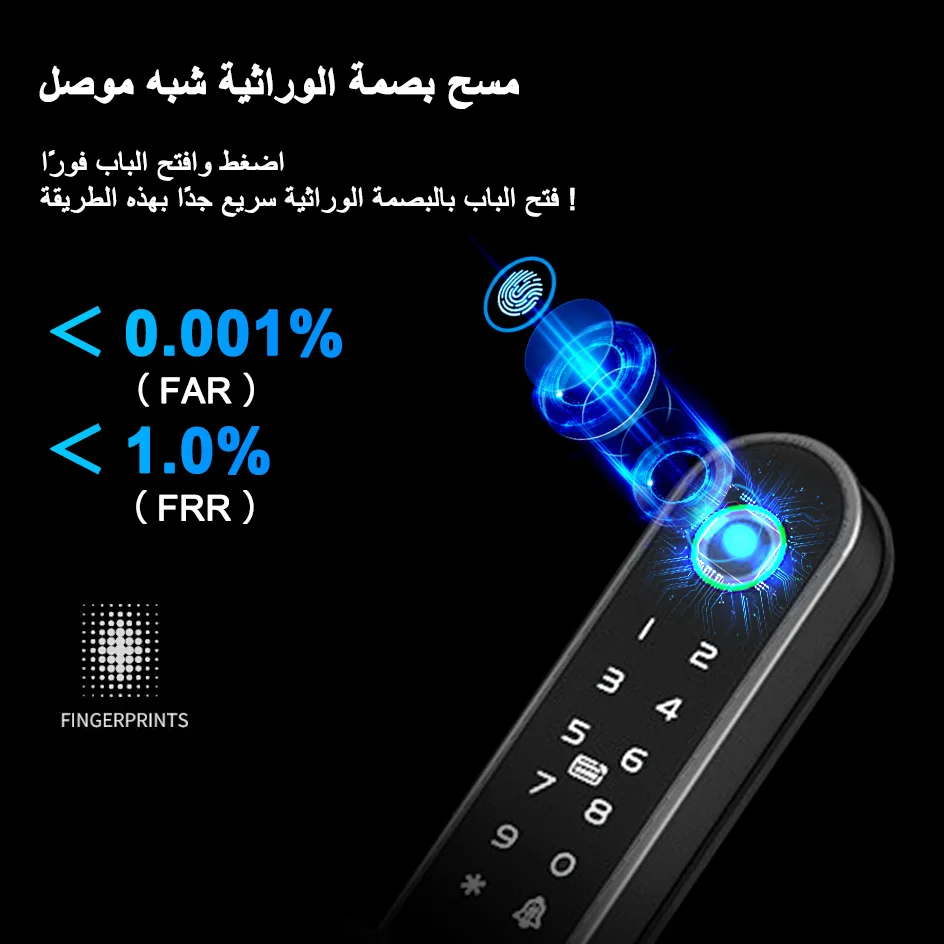

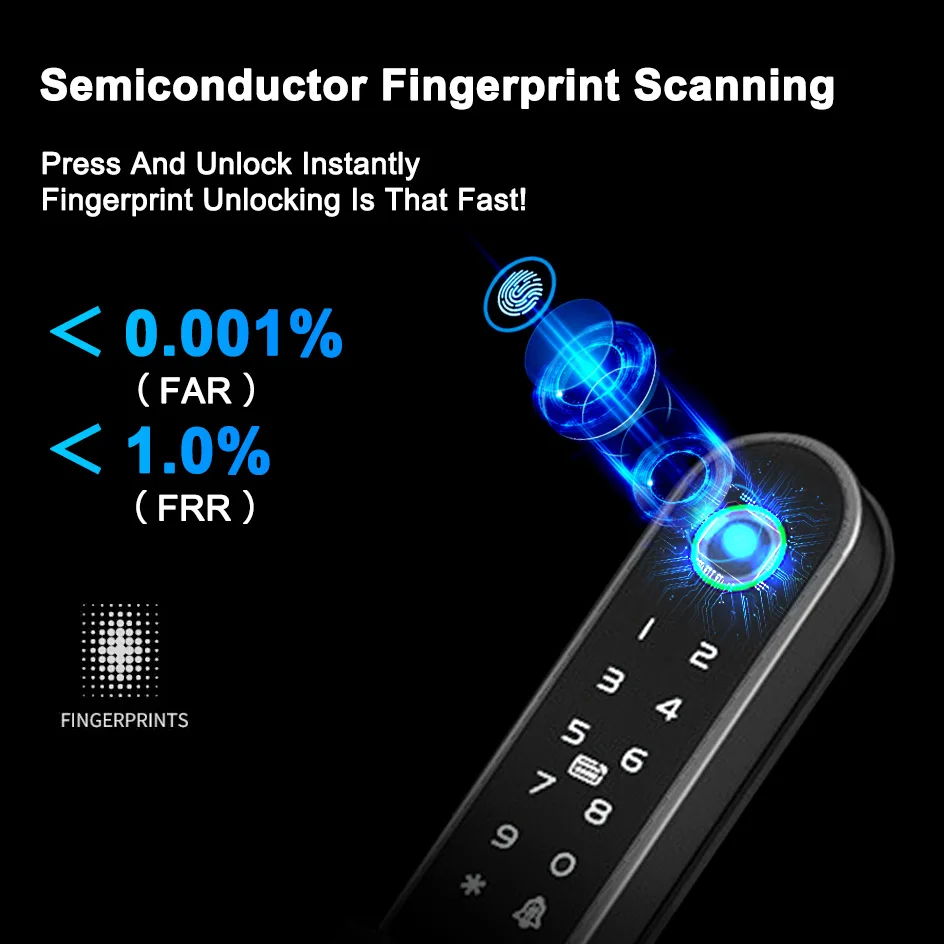

Fingerprint Unlock, 100 pcs fingerprint capacity

Adopt bio semiconductor fingerprint technology to improve safety identification speed and effectively prevent false fingerprint.

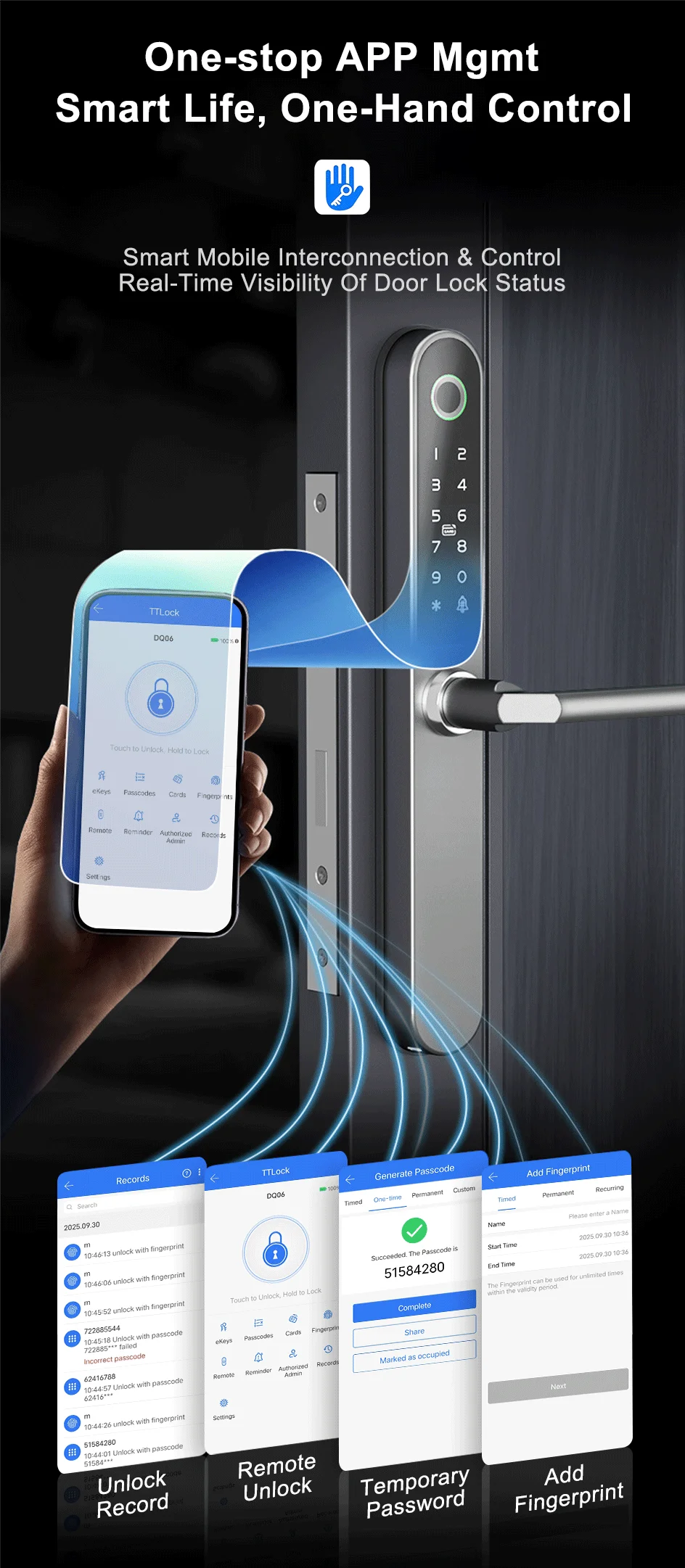

TT LOCK Intelligent management

The lock connect with the phone by Bluetooth.
You can open the lock / manage the lock (add user / delete user / set password and so on)

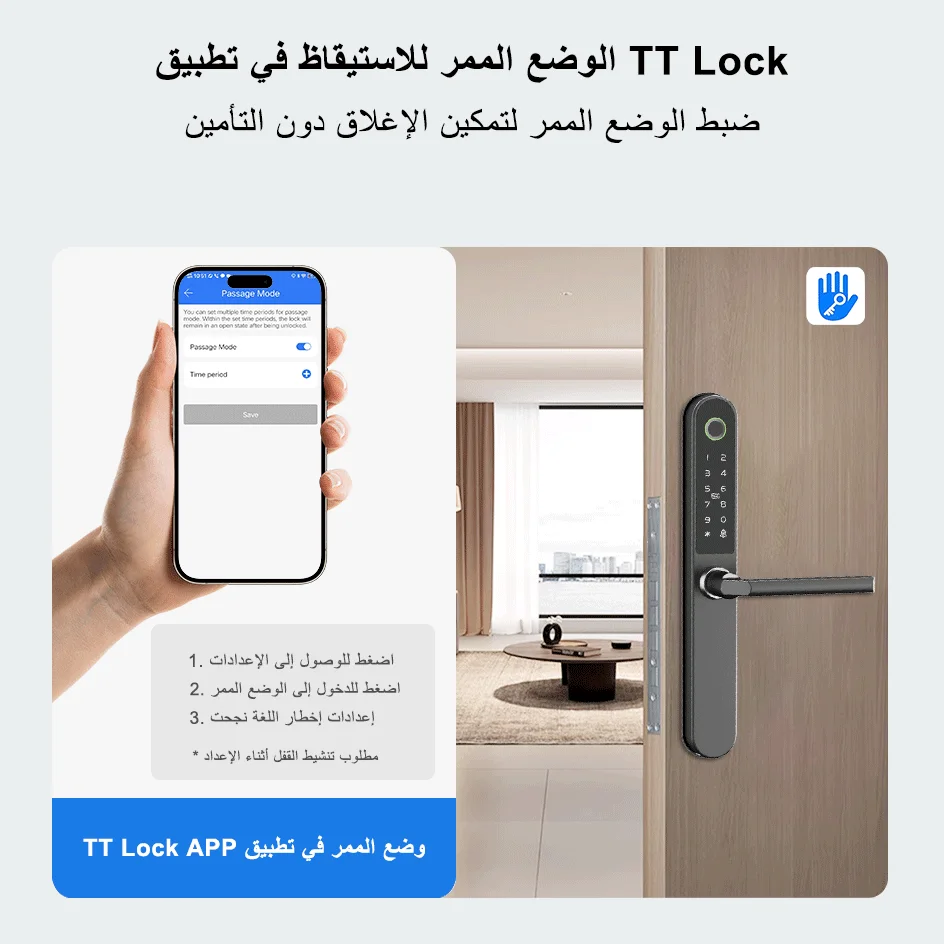

Passage Mode in TT Lock App

Open the passage mode on the app, keep the door open, and reduce the frequency of door opening

Suitable For Various Door Types

Sliding door
; Framed door
; Aluminum alloy
door; KFC gate; Sliding door

About Installtion:

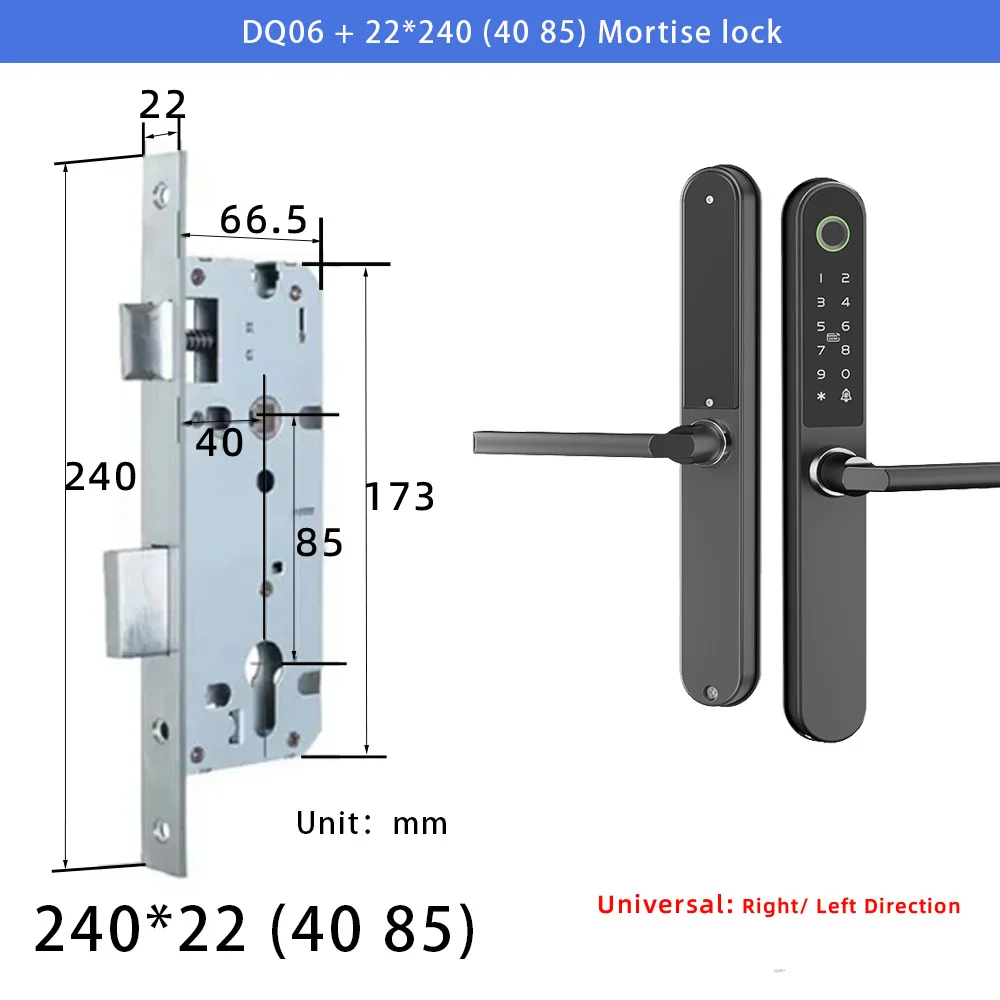

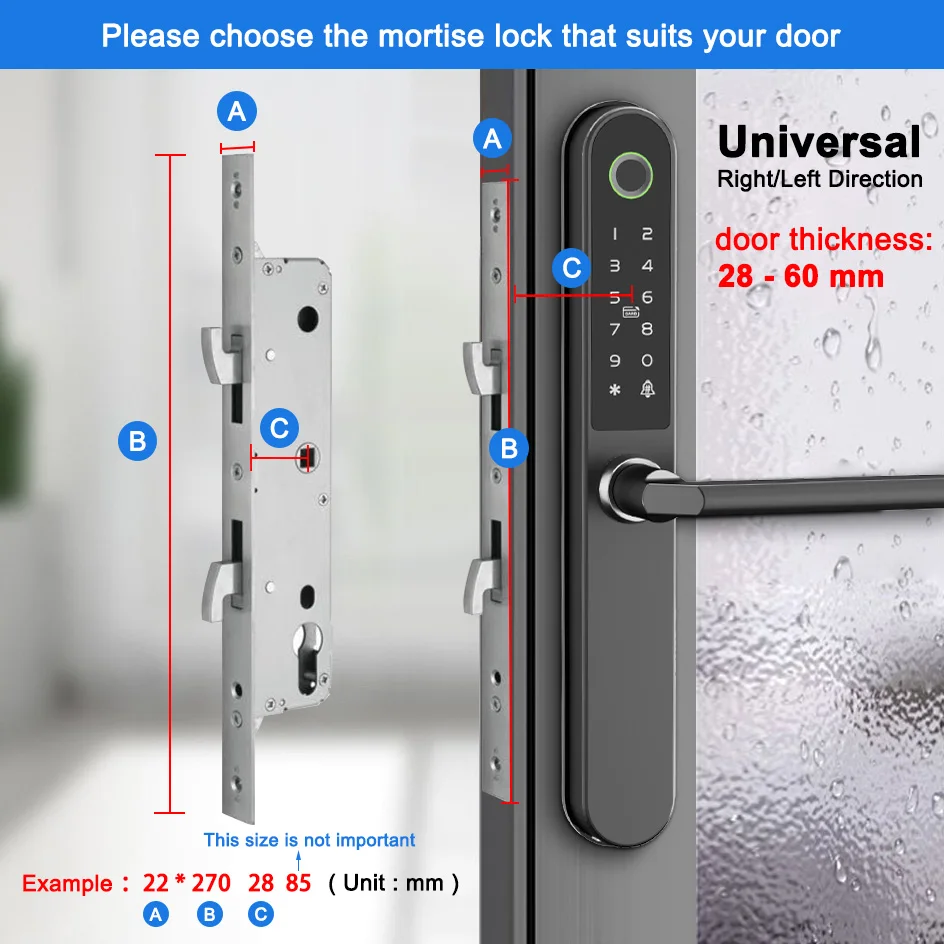

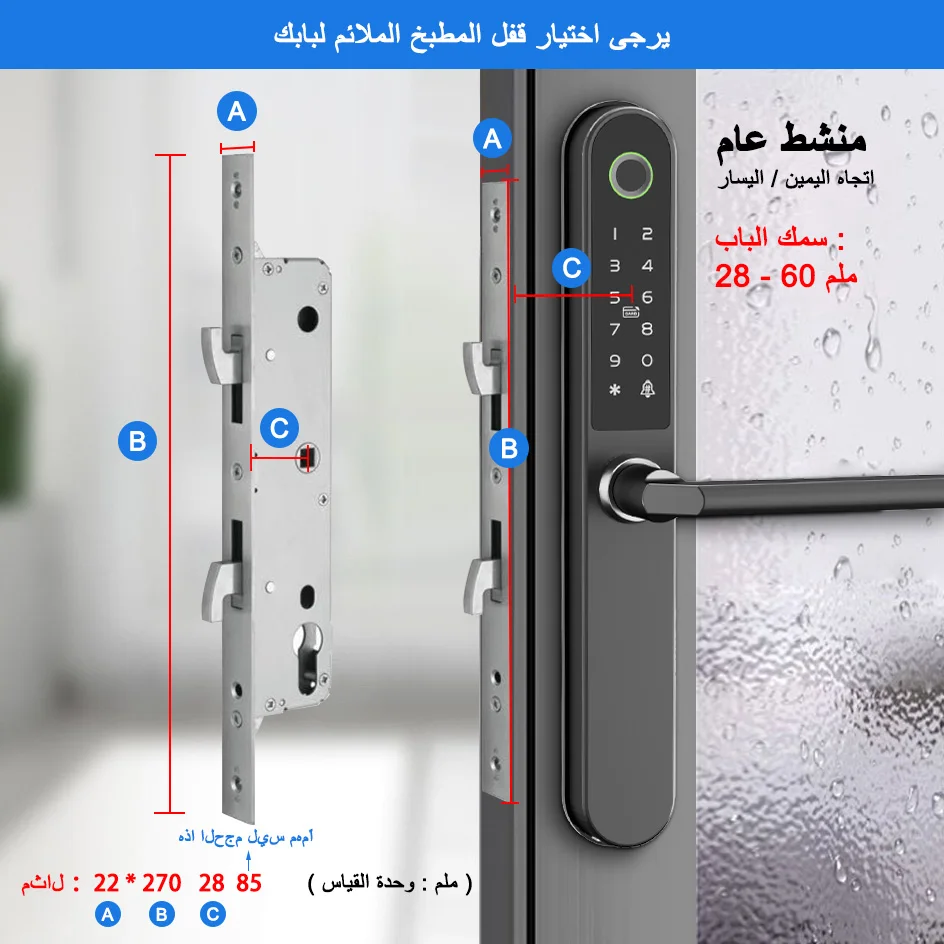

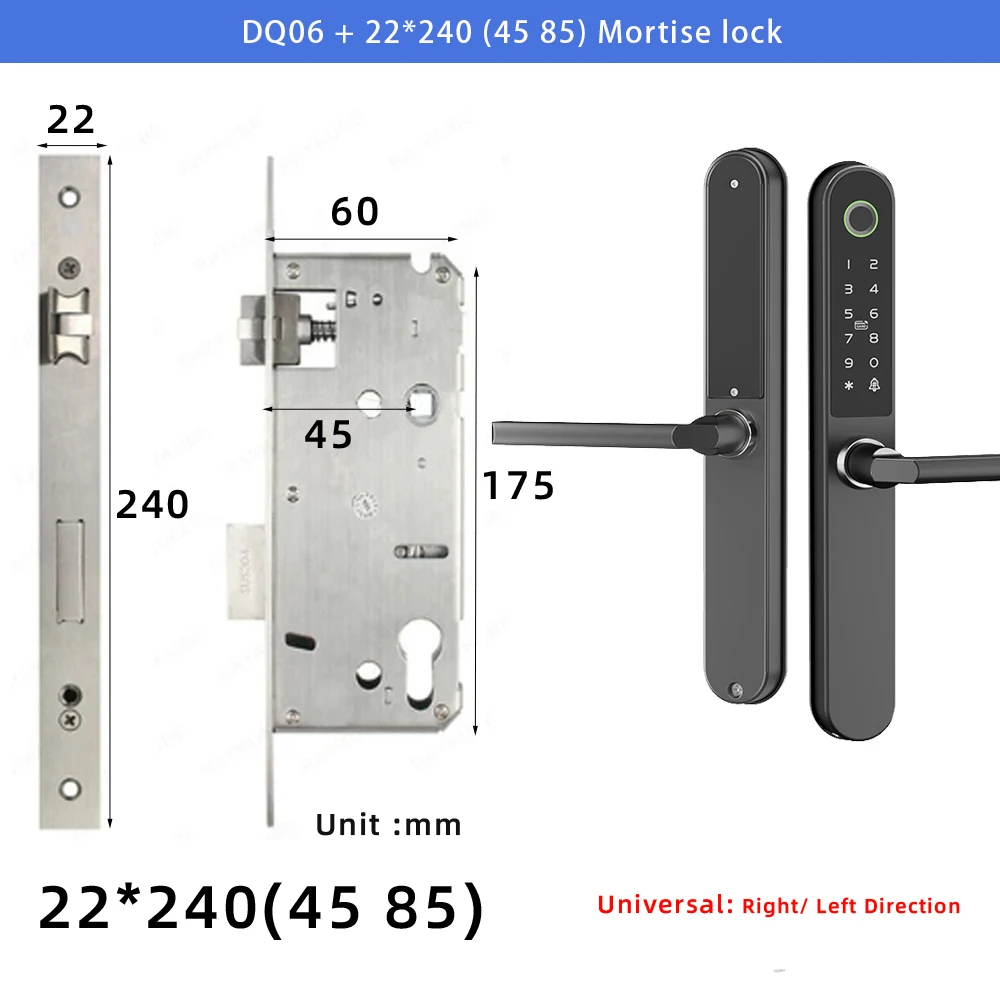

please measure your old mortise lock size, and check our all options different mortise lock size which one suit for your door. That will more easy replacement. Suit for the Door Thickness 28-60mmThere are more 24+ options available

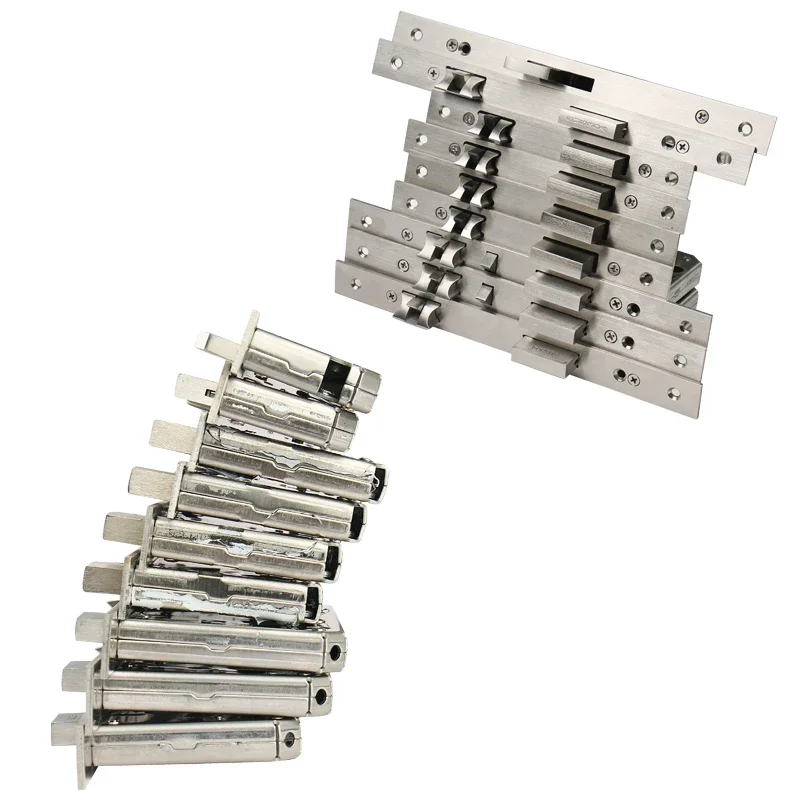

There are more 24+ options available

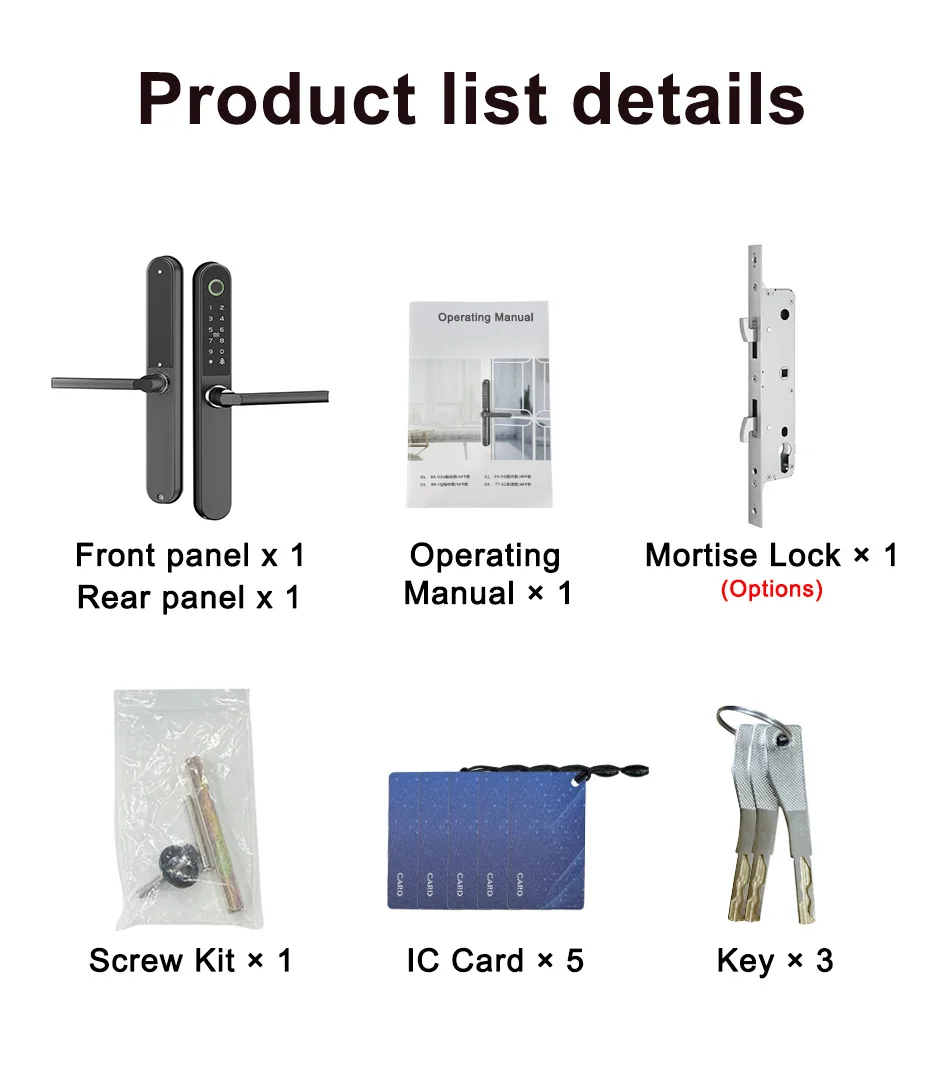

Item includes:

Front panel x 1
Rear panel x 1
Mortise lock x 1
Smart card x 5
Mechanical Key x 3
Screw Kit x 1

Operating Manualx1

FAQ

Q1:What should Ido if fingerprints of the elderly or children are inaccurately recognized?

When adding fingerprints, try to enter them from different angles to enhance recognition accuracy, or add otherfingerprints as backups.

We also provide backup unlocking methods such as IC cards and passwords. With triple protection, there's no need to worry about being unable to open the door.

Q2: How many fingerprints can I add?

Fingerprint capacity: 100 pcs

Passcode capacity: 100 pcs

IC card capacity: 100 pcs

Total user capacity: 300 pcs

Q3: Can it connect to Wi-Fi?

It is a Bluetooth version. To connect to WiFi, an additional gateway is required. Please contact customer service for the gateway link to make a purchase.

Q4: Can it unlock remotely?

Yes, remote unlocking is possible. You can generate a temporary password in the APP to realize remote unlocking—no network is required.

Q5: Can it connect to Alexa or Google Assistant?

Yes, it requires a G2 gateway (buy extra)to connect to Alexa and Google.

Alexa-compatible countries: US, Australia, Canada, UK, France, Italy, Brazil, Saudi Arabia

Google Assistant-compatible countries: English-speaking countries only

Q6: How long does the battery last? Do I need to replace it frequently?

It is powered by 4 *AAA alkaline batteries. Please use high-quality alkaline batteries (do not use rechargeable AA batteries) . With the new batteries, it supports 1,500 to 2,000 unlocks and typically lasts about 4 to 6 months, so frequent replacement is unnecessary. If the battery level is low, the lock will issue a low battery warning, then please replace the batteries promptly.

Q7: How can I open the door if the smart lock runs out of power?

Method 1: Use the backup mechanical key to unlock the door.

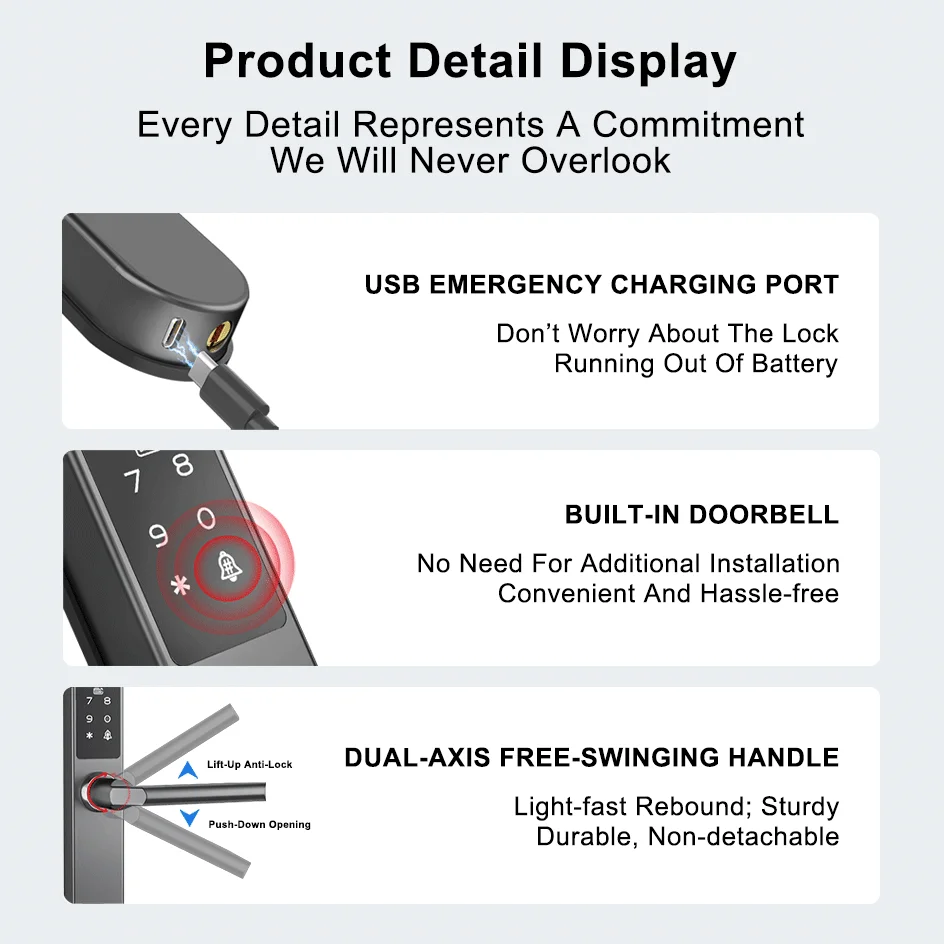

Method 2: There is a Type-C port on the front panel of the smart lock.You can use a power bank to supply emergency power for unlocking.

Q8: Is it waterproof? Can it be used outdoors or exposed to sunlight?

Yes, it is a IP65 waterproof and dustproof lock, which is designed for outdoor use.

; It is made of high-temperature-resistant materials to resistant prolonged sunlight and rain.

Q9: What temperature range does it workin?

It works normally in temperatures ranging from -10°C to 70°C.

Q10: What is the suitable door thickness?

It suitable for doors with a thickness of 28 – 60mm.

If your door thickness exceeds this range, please contact customer service or note your door thickness when ordering. We will provide the appropriate screw kit that helps you.
